- Product Code
- MSI1068
- Brand
- MSI
- Model

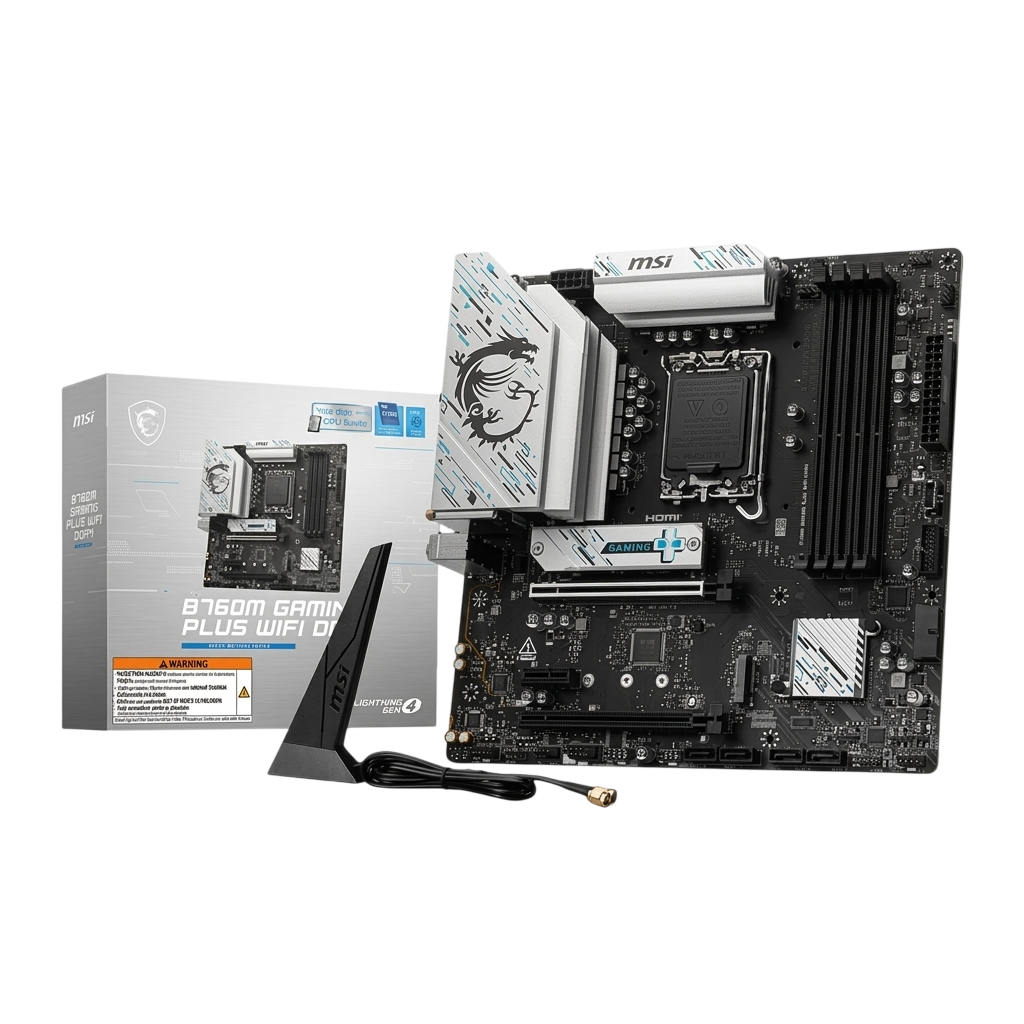

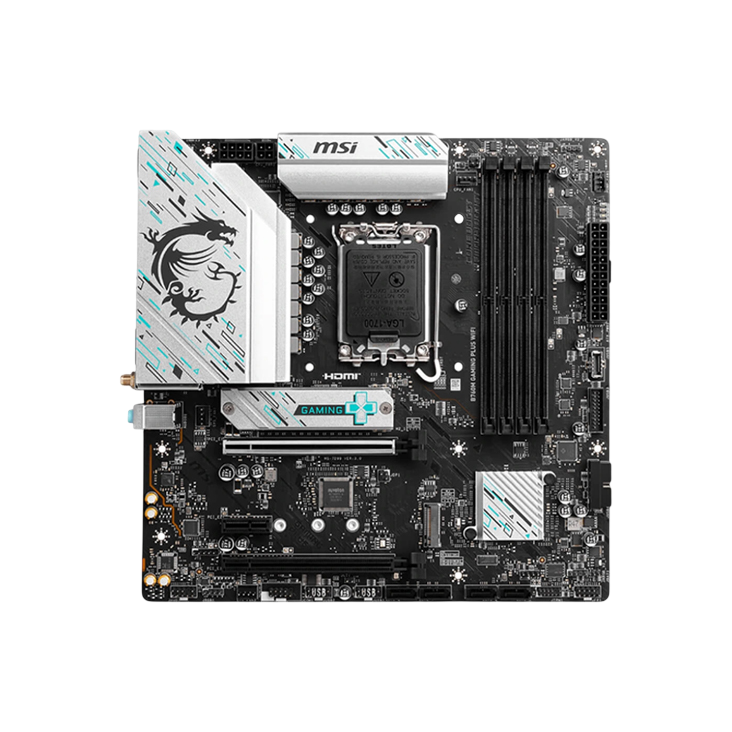

- B760M GAMING PLUS WiFi DDR4
- Chipset
- Intel B760
- Socket
- LGA 1700
- Memory Type
- DDR4
- Memory Support
- Dual Channel, Supports non-ECC, unbuffered memory, Intel XMP 3.0
- Memory Speed
- 5333+ MHz (OC)
- Onboard Graphics
- 2x HDMI 2.1, 2x DisplayPort 1.4 (Requires Processor Graphics)
- Graphics Output
- Supports up to 4K @ 60Hz max resolution
- Expansion Slots
- 2x PCIe 4.0 x16 slots, 1x PCIe 3.0 x1 slot
- Storage
- 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports (Supports RAID 0, 1, 5, 10)
- Ethernet
- 1x Realtek RTL8125BG 2.5Gbps LAN
- Wireless & Bluetooth
- Intel Wi-Fi 6E, Bluetooth 5.3
- USB
- 2x USB 3.2 Gen 2 10Gbps Type-A (Rear), 3x USB 3.2 Gen 1 5Gbps (Type-A + Front Type-C), 4x USB 2.0
- AUDIO
- Realtek ALC897 Codec, 8-Channel (7.1) High Definition Audio with Audio Boost
- Back Panel I/O Ports
- 2x DisplayPort, 2x HDMI, 2x USB 3.2 Gen 2, 2x USB 2.0, 1x 2.5G LAN, 2x Wi-Fi Antenna connectors, 3x Audio Jacks
- Internal I/O Connectors
- 1x 24-pin ATX, 1x 8-pin + 1x 4-pin CPU power, 1x Front Type-C, 1x Front USB 3.2 Gen1, 2x Front USB 2.0, 4x SATA, 4-pin Fan headers
- Operating System
- Support for Windows 11 64-bit, Windows 10 64-bit
- Form Factor
- Micro-ATX (243.84 mm x 243.84 mm)
- Warranty
- 3 Year(s)
