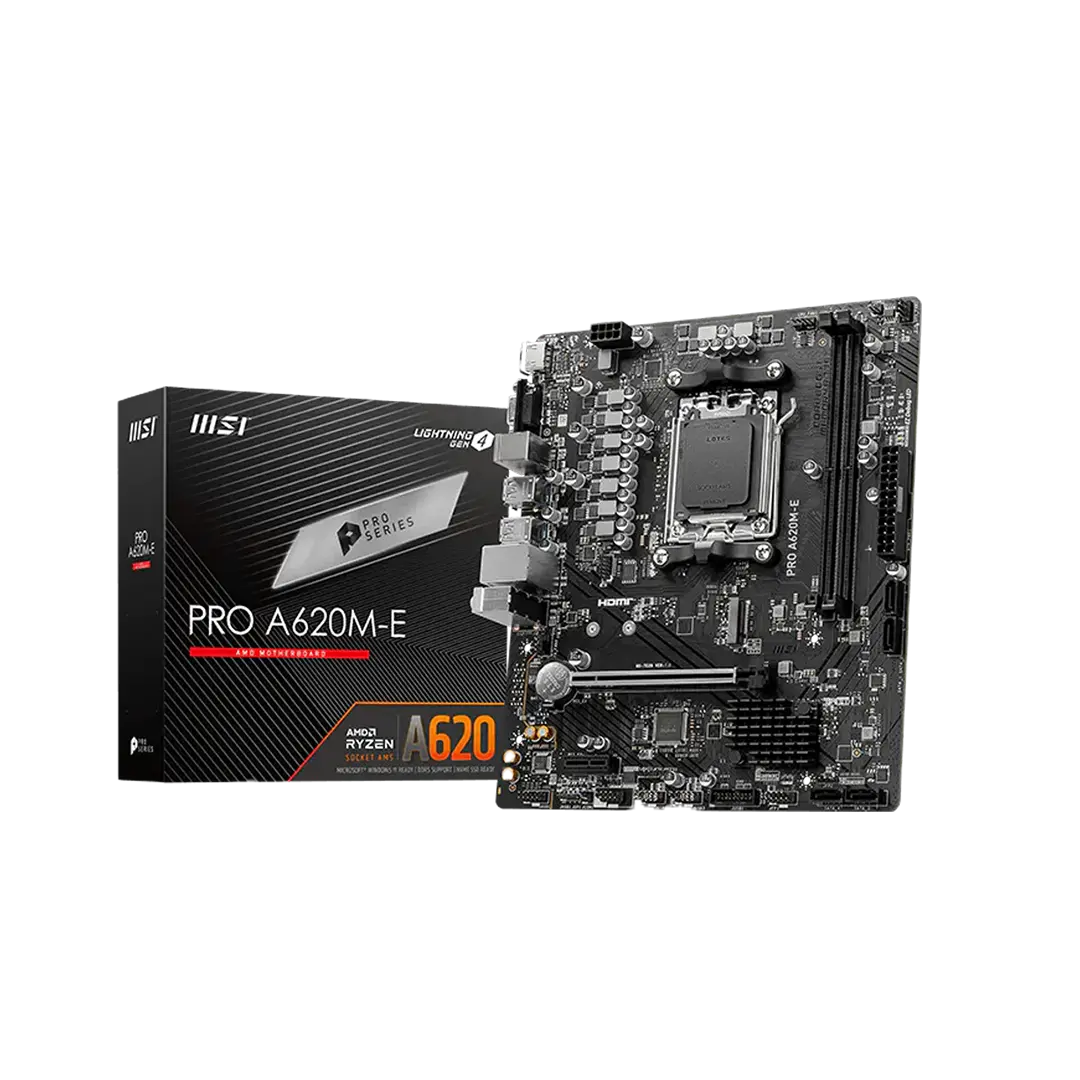

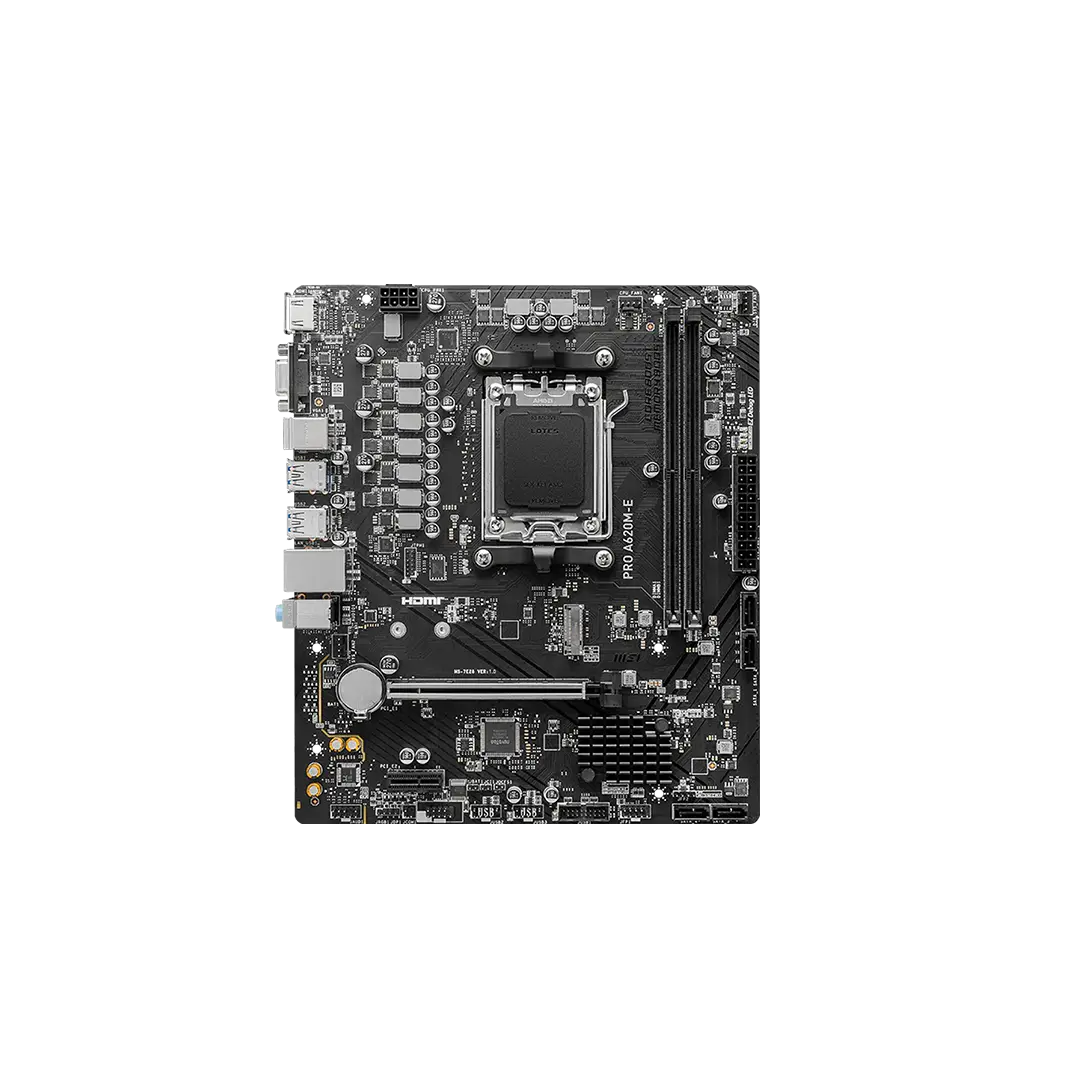

MSI PRO A620M E MOTHERBOARD DDR5

Specifications

Product Code

MBD1003

Brand

MSI

Part Number

PRO A620M-E

Model

PRO A620M-E

Chipset

AMD A620

Socket

Socket AM5

Memory Type

DDR5

Memory Support

2x DDR5 DIMM slots, Dual Channel, Max 128GB

Memory Speed

Up to 6800+(OC) / 6600(OC) / 6400(OC) / 6000(OC) / 5200 / 4800 MHz

Onboard Graphics

Depends on CPU (Requires Processor with Integrated Graphics)

Graphics Output

1x HDMI 2.1 (4K @ 60Hz), 1x VGA (D-Sub) *

Expansion Slots

1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot

Storage

1x M.2 slot (PCIe 4.0 x4), 4x SATA 6Gb/s ports

Ethernet

Realtek® RTL8111H 1Gbps LAN

Wireless & Bluetooth

None (No Onboard Wi-Fi/Bluetooth)

USB

6x USB 3.2 Gen 1 5Gbps (4 Rear Type-A, 2 Front), 6x USB 2.0 (2 Rear, 4 Front) *

AUDIO

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Back Panel I/O Ports

1x HDMI, 1x VGA, 1x PS/2 Combo Port, 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0, 1x LAN (RJ-45), 3x Audio Jacks

Internal I/O Connectors

1x M.2 slot, 4x SATA 6Gb/s, 1x 24-pin Power, 1x 8-pin ATX 12V Power, 1x CPU Fan, 2x System Fan, 1x Front Audio, 1x RGB LED connector, 2x USB 2.0 headers, 1x USB 3.2 Gen 1 header

Operating System

Supports Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX (Micro-ATX)

Warranty

03 Year(s)
